Accelerate Drug Discovery with Automated Library Synthesis

Overview

Chemspeed's solution

Medicinal chemistry is driven more and more by the demand for innovative, better medicines which involves molecular diversity and novel routes, meaning more and more experiments typically with the same amount of resources.

Chemspeed’s fully automated, integrated FLEX ISYNTH stands for a flexible, modular, and uncompromising automated solution that unlocks the chemical space via faster, better, virtually unrestricted “off-road” chemistry investigation of the reaction space, reagent space or molecule space.

It also enhances your efficiency and productivity by a factor of up to 100, for example in:

C-C, C-N coupling reactions
Organometallic reactions (e.g. Grignard)
Alkylations
Diels-Alder reactions
Transfer hydrogenations

Workflow

Example workflow

The interactive workflow panel below showcases example workflows for this solution. Each Chemspeed tool or module performs a set of specific actions, as in any manual lab workflow, and an almost limitless arrangement of these tools is possible.

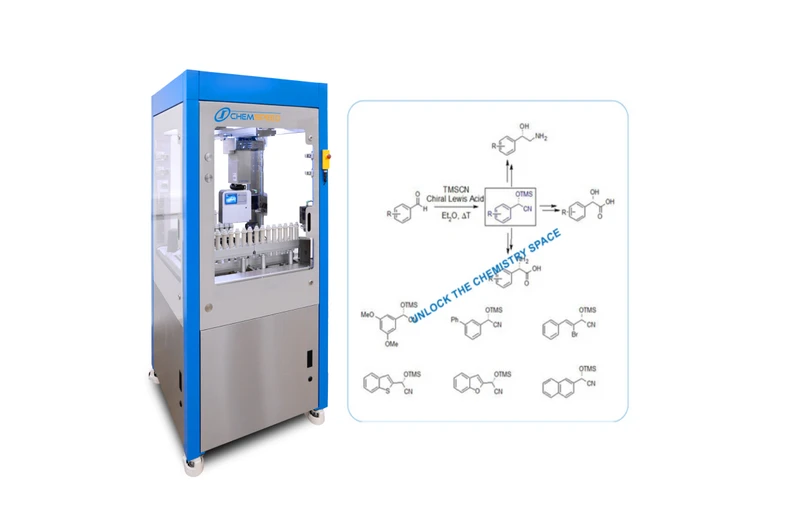

FLEX ISYNTH - Library synthesis

Benefits

Powerful advantages

Fully automated, integrated reaction preparation, synthesis, work-up, analysis, output to storage vials for solid- and liquid-phase library synthesis.
Easy-to-use disposable multi-functional, high-precision glass reactor arrays with available reaction scales from μL to mL, screwless and self-sealing opening / closing, mixing by shaking (up to 1'000 rpm without cover).
Glass reactor arrays can also feature heating (up to 150 °C), cooling (-20 °C), refluxing, vacuum, inertization, evaporation, extraction, filtration, solid-phase extraction, crystallization and drying.
Proprietary robotic tool exchange.
Gravimetric solid handling from μg to g.
Gravimetric liquid handling from μL to mL.
Chemistry proven liquid handling with e.g. pH, filtration, heated needle extension.
Throughput, up to 48 / 96 / ... parallel reactions per run based.
Sampling.
Various integrated analytics such as HPLC (MS), UPLC (MS), GC (MS).
Online benchtop flow-cell NMR, offline benchtop NMR, Online benchtop flow-cell UV-VIS, pH measuremnt & adjustment, NIR & MIR measurement cell and DLS measurement cell.
AUTOSUITE SOFTWARE - drag & drop experimentation with easy interface to data analysis.
Interface to e.g. DOE, ML, AI, LIMS, ELN, ERP.
Ventilated hood for safety as well as conditioned operation and trolley.
Optimized footprint (3x3 ft, 90x90 cm) versus capacity... all while reducing coats / maximising return on investment.
