Core

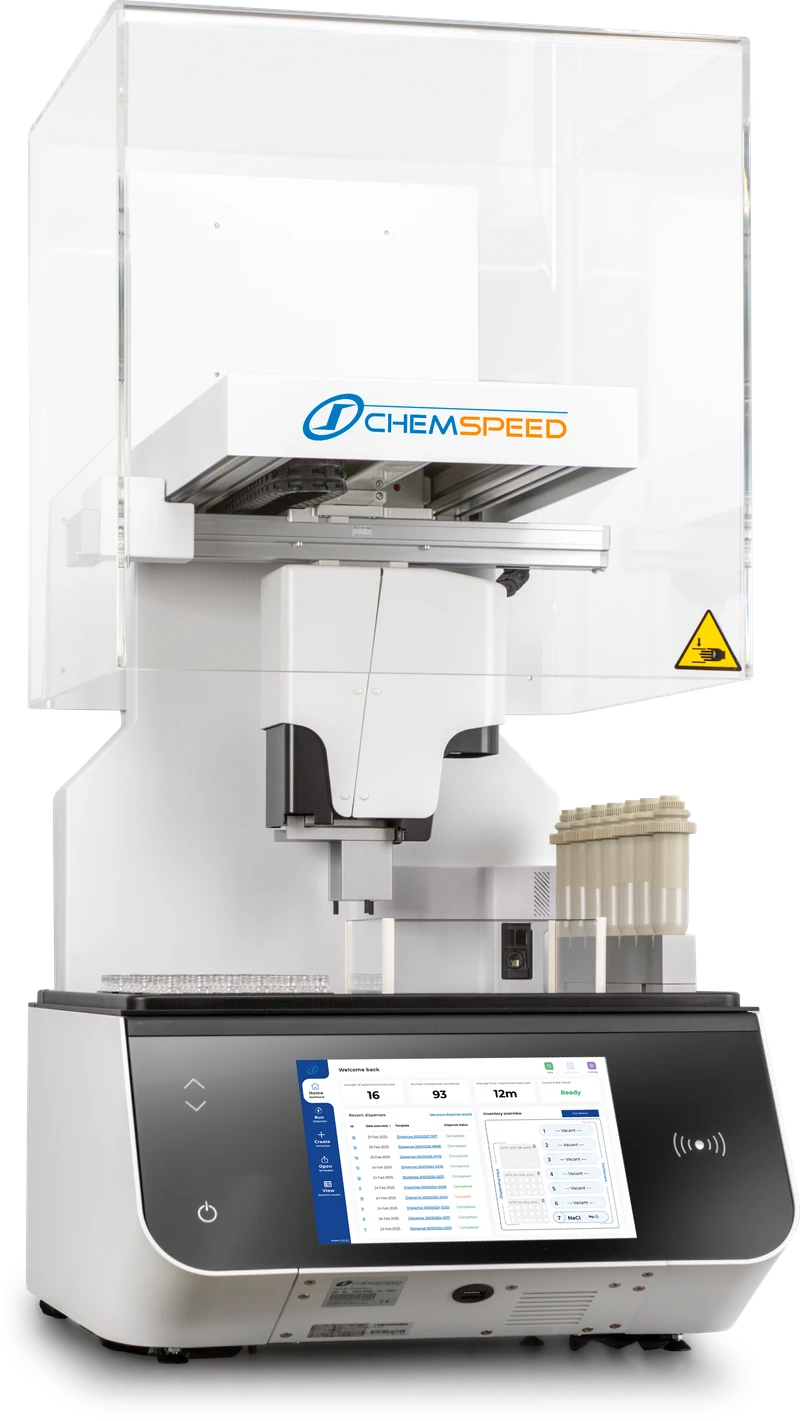

Powderdose 17
The benchtop autonomous solid dispenser — a complete weighing-and-dosing workflow in a single enclosure.
01 / 05Introducing
CRYSTAL
A new platform architecture for autonomous chemistry. Compact. Composable. Built to scale with your science.
Scroll
CRYSTAL
0%
Engineered for chemistry
A lattice of precision, optimised for every reaction.
CRYSTAL pairs a deterministic motion system with adaptive process control — letting the platform discover the right path through any workflow you give it.
Deterministic motion
Sub-millimetre repeatability across the full deck, frame after frame, run after run.
01Composable modules
Plug in the chemistry you need — liquid handling, weighing, characterisation — without rewriting the platform.
02Adaptive control
On-the-fly process feedback re-routes the workflow when reality disagrees with the plan.
03Audit-ready
Every action, sensor read and decision is timestamped and signed — GxP from day one.
04Cloud-native data
Streamed results land in your ELN with full provenance, ready for downstream analytics.
05Serviceable by design
Modular front and side panels, tool-less swaps, remote diagnostics — engineered for uptime.
06Anatomy
Every part, considered.
Tap a point to explore how CRYSTAL fits a full dispensing workflow into a single benchtop footprint.
Dispensing head
Gravimetric powder dosing with live balance feedback — the platform weighs as it dispenses to hit the target mass exactly.
Modules & accessories
Build the platform your chemistry needs.
Precision

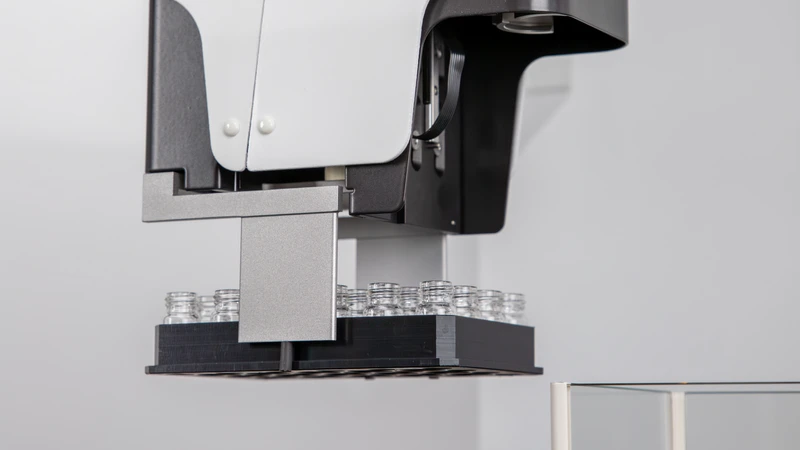

Gravimetric head
Closed-loop dispensing to the sub-milligram, verified on the balance and logged for every target.
02 / 05
Capacity

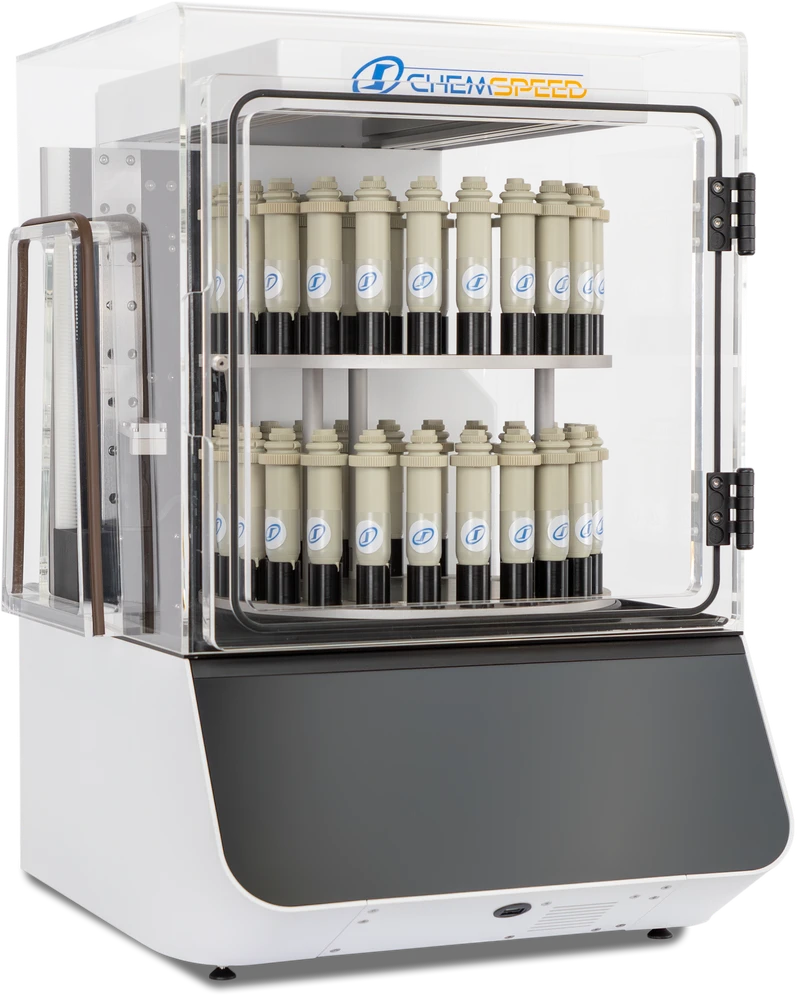

Storage extension
Keep dozens of dosing heads online at once for long, walk-away campaigns across many substances.
03 / 05Add-on
Liquid addition
Pair solid dosing with precise liquid handling for slurries, solutions and formulation work.
04 / 05Add-on
Capping & decapping
Automated vial closure keeps samples sealed between steps — no manual handling in the loop.
05 / 05Scroll to explore
How it runs
From idea to insight, in four moves.
- 01
Design
Define your experiment space in software — substances, targets and tolerances.
- 02
Load
Place substrates and cartridges; CRYSTAL inventories everything on the deck.
- 03
Run
Unattended dosing with gravimetric verification — around the clock if you need it.
- 04
Insight
Results stream to your ELN with full provenance, ready for analysis.
Footprint
0.0m²
Deck positions
0
Throughput
0×baseline
Mean MTBF
0kh
Specifications
The full sheet.
Indicative figures for the CRYSTAL Powderdose platform. Contact us for the configuration-specific datasheet.
- Footprint
- ≈ 1.4 m²
- W × D × H
- 720 × 760 × 1150 mm
- Weight
- ≈ 180 kg
- Deck positions
- up to 64
- Supply
- 100–240 V, 50/60 Hz
- Power draw
- ≈ 600 W typical
- Operating temp.
- 15–30 °C
- Humidity
- 20–70 % RH, non-cond.
- Target range
- 1 mg – 5 g
- Verification
- gravimetric, in-line
- Heads online
- up to 64
- Repeatability
- CV < 1 % (typical)
- Control
- On-board touch + remote
- Data export
- ELN · CSV · REST API
- Audit trail
- 21 CFR Part 11 ready
- Integrations
- ELN / LIMS / robotics
From the lab
“We moved a week of manual weighing into an overnight run. The gravimetric log alone changed how we report.”
Formulation lead
Specialty chemicals (placeholder)
“Reproducibility stopped being a conversation. The numbers are simply there, signed and traceable.”
Lab manager
Pharma R&D (placeholder)
“Adding the storage extension doubled our walk-away time without touching the workflow.”
Automation engineer
Battery materials (placeholder)
Questions
Good to know.
The core Powderdose unit is a benchtop instrument with roughly a 1.4 m² footprint including service clearance. The storage extension docks alongside it.
Yes. Results, gravimetric logs and full run provenance stream out in standard formats and can be pushed to your electronic lab notebook automatically.
Because dispensing is closed-loop against an on-board balance, the platform doses to a verified target mass rather than an estimate — down to the sub-milligram for suitable powders.
Every action, sensor reading and decision is timestamped and signed, giving you an audit-ready record designed for regulated workflows from day one.
Ready when you are
See CRYSTAL in your lab.
Book a live demo with a Chemspeed engineer and walk through a workflow built around your chemistry.
