example solution
Swing

High output polyolefin and rubber synthesis, optimization, scale-up

MULTIPLANT / AUTOPLANT POSY
Quality by design driven, scalable olefin polymerization, incl. reaction prep, synthesis, work-up, analysis.

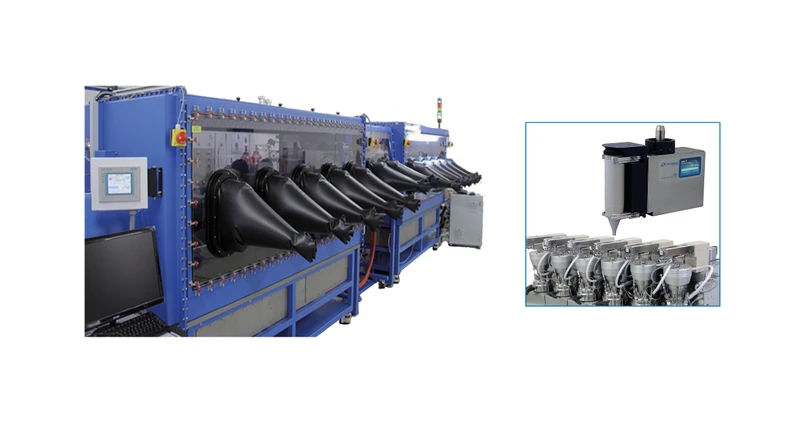

Two blue chemspeed robotic platforms in metal sitting in a white hallway
Overview

Chemspeed's solution

The leading technology in overhead gravimetric dispensing / dosing (patented) combined with our quality by design reactor technology as well as process excellence and user-friendly software enable you to accelerate, standardize and digitize your polyolefin and rubber synthesis / optimization / scale-up workflows:

  • solution-phase
  • slurry-phase
  • bulk-phase
  • gas-phase
  • multi-stage
  • polymerizations.

Each reactor with its own set of conditions - individually controlled tank reactors (reactor volumes 100, 240, 1’000 mL total volume) with precise, continuous feeds.

Workflow

Example workflow

The interactive workflow panel below showcases example workflows for this solution. Each Chemspeed tool or module performs a set of specific actions, as in any manual lab workflow, and an almost limitless arrangement of these tools is possible.

MULTIPLANT / AUTOPLANT POSY

Details
đź’ˇ Click on a workflow node to see more details in this details panel.
Benefits

Powerful advantages

  • Up to 36 olefin polymerizations per run on an AUTOPLANT, up to 6 per run on a MULTIPLANT.
  • Integration with / in MBrown glove-box.
  • Independent control of all process parameters in each reactor with PAT like NIR, PSD, GC(MS).
  • Independent and precise temperature and stirring control in each reactor.
  • Up to 8 independent gas, liquefied gas and liquid feeds per reactor.
  • Gravimetric solid and viscous liquid dispensing.
  • 4-Needle Head for volumetric liquid handling and sampling.
  • Feeding and sampling under reaction conditions.
  • Cleaning in place (e.g. automated cleaning, inserts).
  • Dispensed amount, stirrer speed, temperature, pressure, time, ... and other data are stored in a read only log file.
  • AUTOSUITE software - drag & drop experimentation with easy interface to data analysis.
  • Interface for e.g. DOE, ML, AI, LIMS, ELN, ERP integration.
Software

AUTOSUITE

Chemspeed’s AUTOSUITE software packages execute and control all modules in every solution. They control all Chemspeed robotic platforms and any other integrated 3rd-party software and hardware.

Explore AUTOSUITE
Chemspeed AutoSuite Software laptop screen
Automate and digitalize your laboratory with Chemspeed.
